ミニスタジオ有限会社 |
|
|
|
|
|
|
|
MiniStudio Inc. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

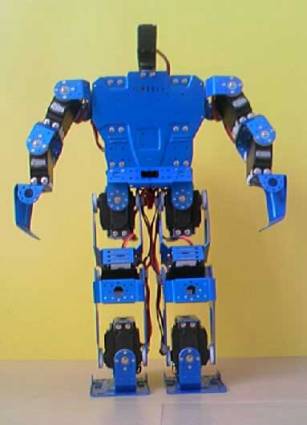

MiniS-Robot 17DOF
Part List |
|
|
No. |
Product |
Part Number |
Quntity |
Remark |
|
1 |
RB1051 Double Axis Servo Set with Horns |
MiniS RB1051-HBC |
6 |
|
|
2 |
Extended 47cm Cable RB1051 Double Axis Servo Set with Horns |
MiniS RB1051-HBC-47 |
4 |
|
|
3 |
RB303d Double Axis Servo Set with Horns |
MiniS RB303d-HBC |
7 |
|
|
4 |
Robot Arm Bracket |
MiniS-BRKT-ARM1 |
7 |
|
|
5 |
Robot Body Bracket |
MiniS-BRKT-BODY1 |
2 |
|
|
6 |
Robot Hip/Heel Bracket |
MiniS-BRKT-HIPHEEL1 |
4 |
|
|
7 |
Robot Thigh(Big Leg) Bracket |
MiniS-BRKT-THIGH1 |
2 |
|
|
8 |
Robot Foot Bracket |
MiniS-BRKT-FOOT1 |
2 |
|
|
9 |
Multi-usage Flat Bracket A |
MiniS-BRKT-FLATA |
17 |
|
|
10 |
Robot Small Leg bracket (Left) |
MiniS-BRKT-SLEG-L |
2 |
|
|
11 |
Robot Small Leg bracket (Right) |
MiniS-BRKT-SLEG-R |
2 |
|
|
12 |
Robot Hand Bracket (Left) |
MiniS-BRKT-HAND-L |
1 |
|
|
13 |
Robot Hand Bracket (Right) |
MiniS-BRKT-HAND-R |
1 |
|
|
14 |
Robot Head Angle bracket (Left) |
MiniS-BRKT-HEADANG-L |
0 |
* |
|
15 |
Robot Head Angle bracket (Right) |
MiniS-BRKT-HEADANG-R |
0 |
* |
|
16 |
Robot Waist Bracket |
MiniS-BRKT-WAIST |
1 |
|
|
17 |
Square Servo Mount |
MiniS-MNT-SQ20 |
34 |
|
|
18 |
RB303ｃ、ｄ Mount
Washer |
MiniS-MNT-SQ3 |
14 |
|
|
19 |
Plastic Body Sheet |
MiniS-SHT-BODY |
1 |
|
|
20 |
Power Switch |
MiniS-SW-POWER |
1 |
|
|
21 |
NiMH 1100mA Battery |
MiniS-NMH-1100-2 |
0 |
* |
|
22 |
Plastic Servo Mount Washer |
MiniS-SM-WASHR |
76 |
|
|
23 |
Plastic Cable Clamp |
MiniS-CLP-010 |
2 |
|
|
24 |
Spacer M3H3 for Board Mount |
MiniS-SPCR-M3x3 |
4 |
|
|
25 |
Low Cap Screw M2x4 for Horn |
MiniS-SCRW-AHN2x4 |
150 |
|
|
26 |
Screw M2x6 for Clamp |
MiniS-SCRW-PM2x6 |
20 |
|
|
27 |
Plastron tapping screw M2x8 for Board Fix |
MiniS-SCRW-PB2x8 |
4 |
|
|
28 |
Plastron tapping screw M3x5 for Body |
MiniS-SCRW-PB3x5 |
60 |
|
|
29 |
Plastron
tapping screw M3x6 for Servo |
MiniS-SCRW-PB3x6 |
60 |
|
|
30 |
Plastron tapping screw M3x8 for Servo RB1151 |
MiniS-SCRW-PB3x8 |
80 |
|
|
31 |
Plastron tapping screw M3x10 for Servo RB303 |
MiniS-SCRW-PB3x10 |
24 |
|
|
32 |
Plastic Tie |
MiniS-TIE-01 |
2 |
|
|
33 |
RS232 Cable |
Cable-232A |
1 |
|
|
34 |
Control Board with 24 Channel PWM Output |
MiniS-Port 05-01VE 452-24 |
1 |
|
|
35 |
RB303d Bottom
Case for orthonormal axis |
MiniS-SBC-303 |
4 |
|
|
36 |
Dump Washer Φ13x3mm |
MiniS-DMP-WASHR-30 |
10 |
|
|
37 |
Dump Washer Φ14x2mm |
MiniS-DMP-WASHR-20 |
8 |
|
|
38 |
Dump Washer Φ14x1.5mm |
MiniS-DMP-WASHR-15 |
4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*Option, Not included in Kit |
|
|
|
Note: |
|
|
|
|
(1)Additional Screw might be needed according to the different
assembly |
|
|
|
|
(2)Software and materials refers to |
|
|
|
|
http://www.ministudio.co.jp/ |
|
|
|
|
(3)Do not allow the interference of Servos with each other |
|
|
|
(4)Do not touch the Servo when it is running to prevent from
injuring |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
以上 |
|
|
|
|
|
|
|
